CONTINUOUSLY
OPTIMIZATION
PROGRESS.

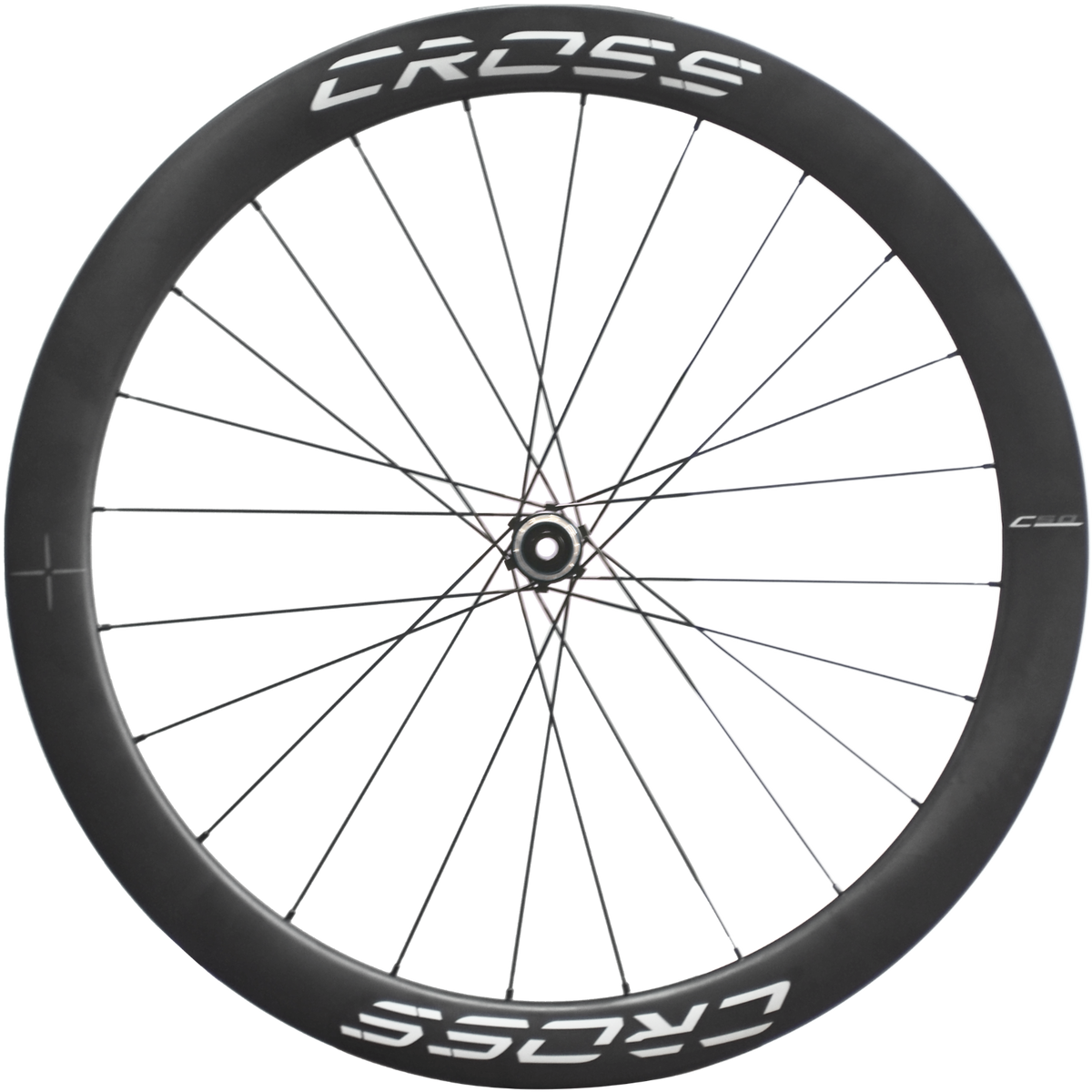

Wheelset Weight
1299g
Material
Carbon T800
Frame Height
50MM
WHEELSET CATEGORIES
ROAD
MTB

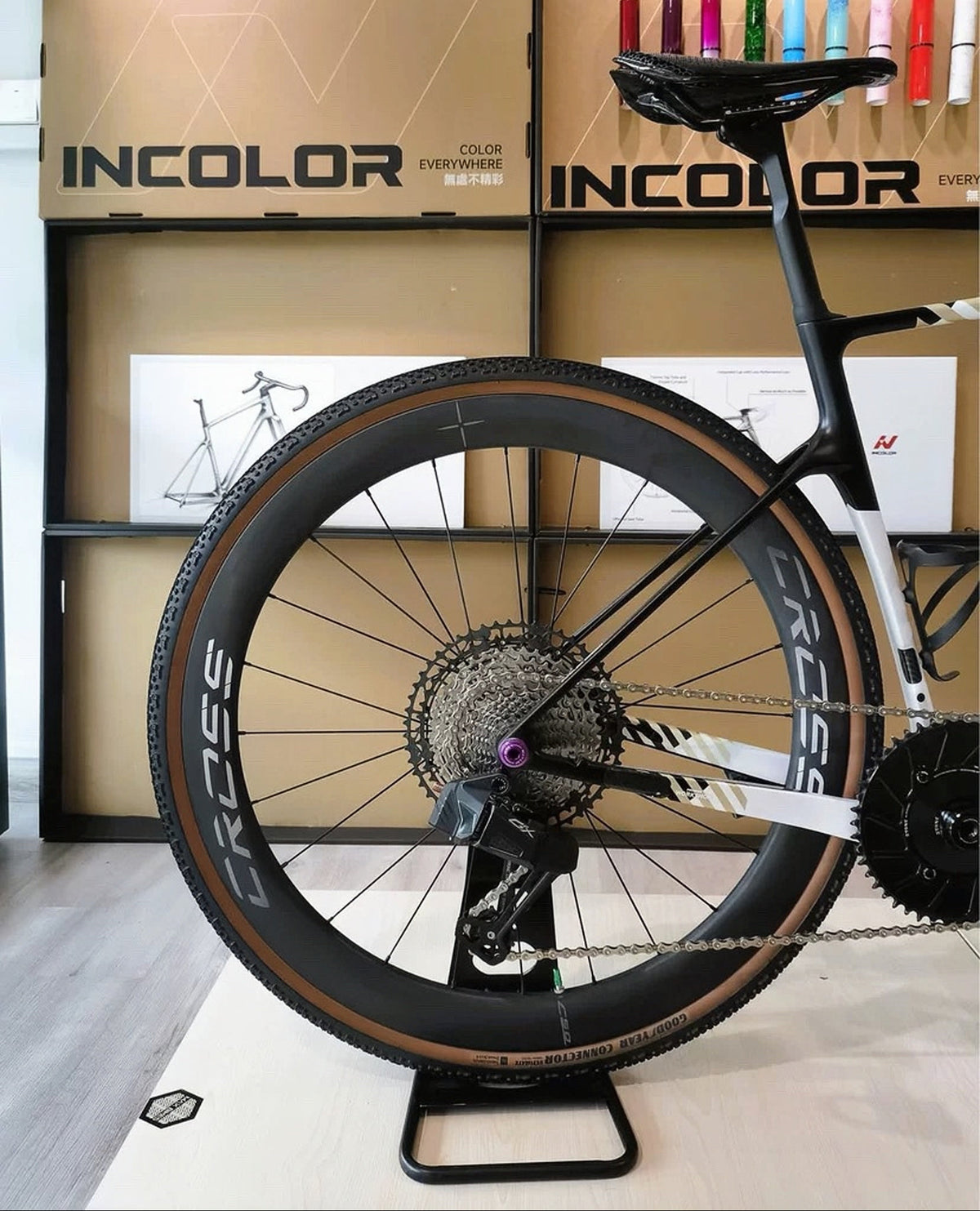

GRAVEL

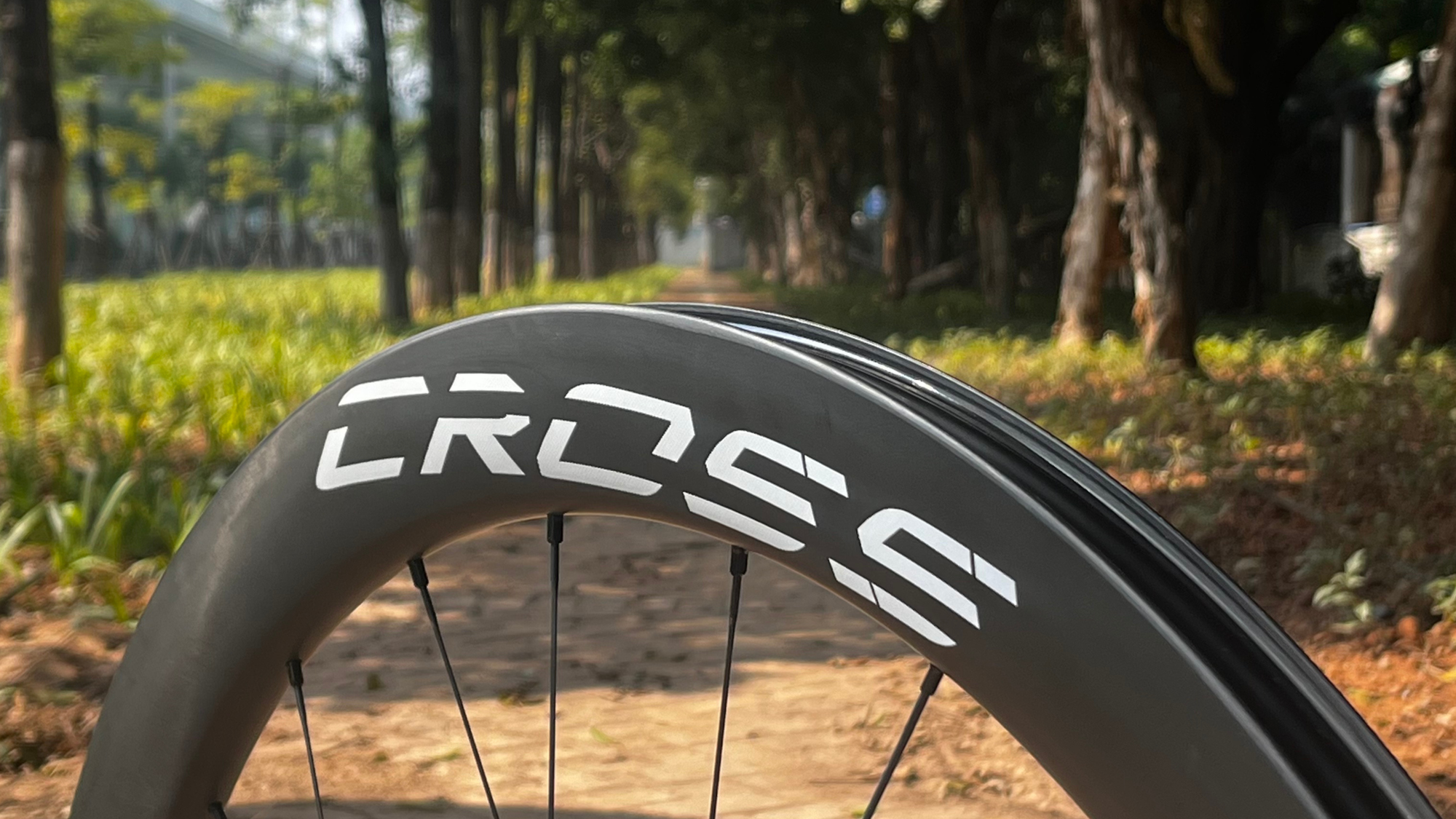

Aero UV Wide Rim
Aero shape, UV finish, wide rim design, low drag & high adaptability.
Paint-Free Design
T800 carbon fiber UD weave, raw texture, lightweight & durable.

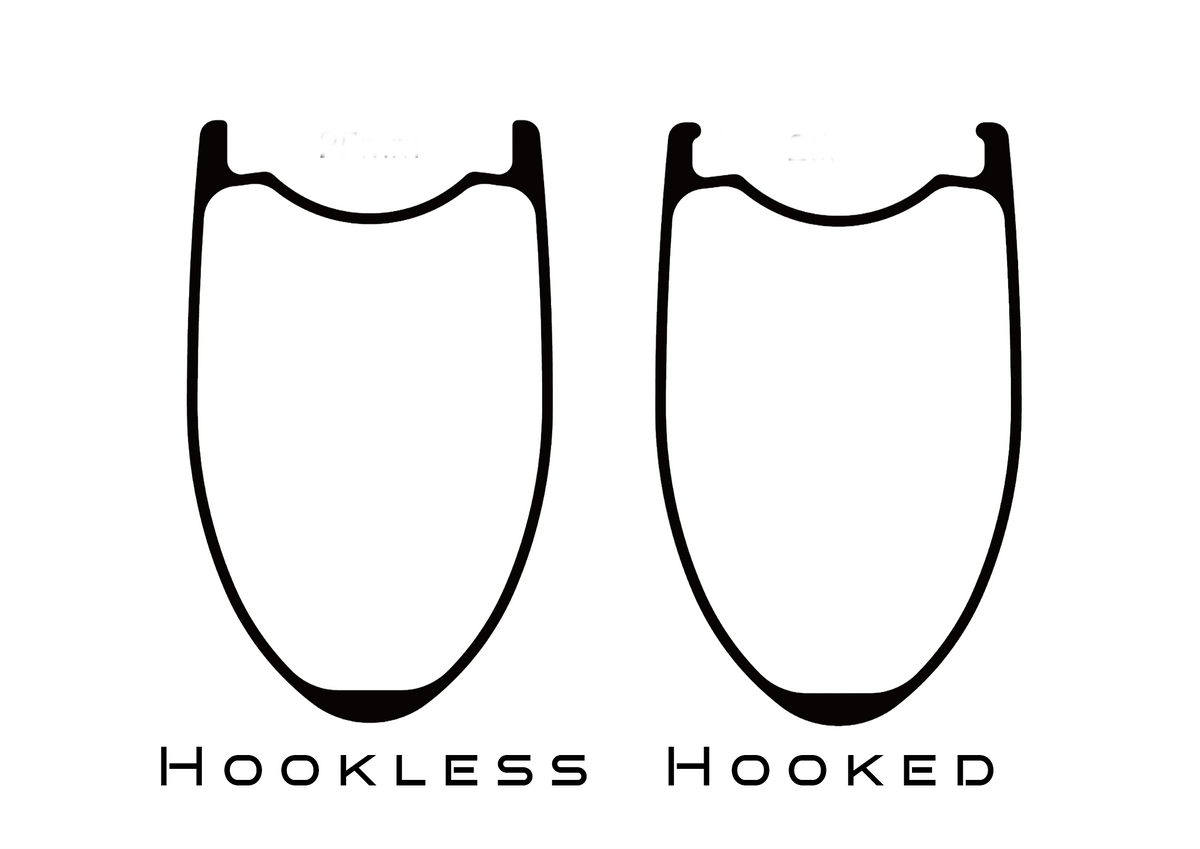

Hooked Rim
Tubeless & Clincher Compatible，Tubeless Tape 15-20g/set，Outer 30mm·Inner 23mm.
Centered Rim

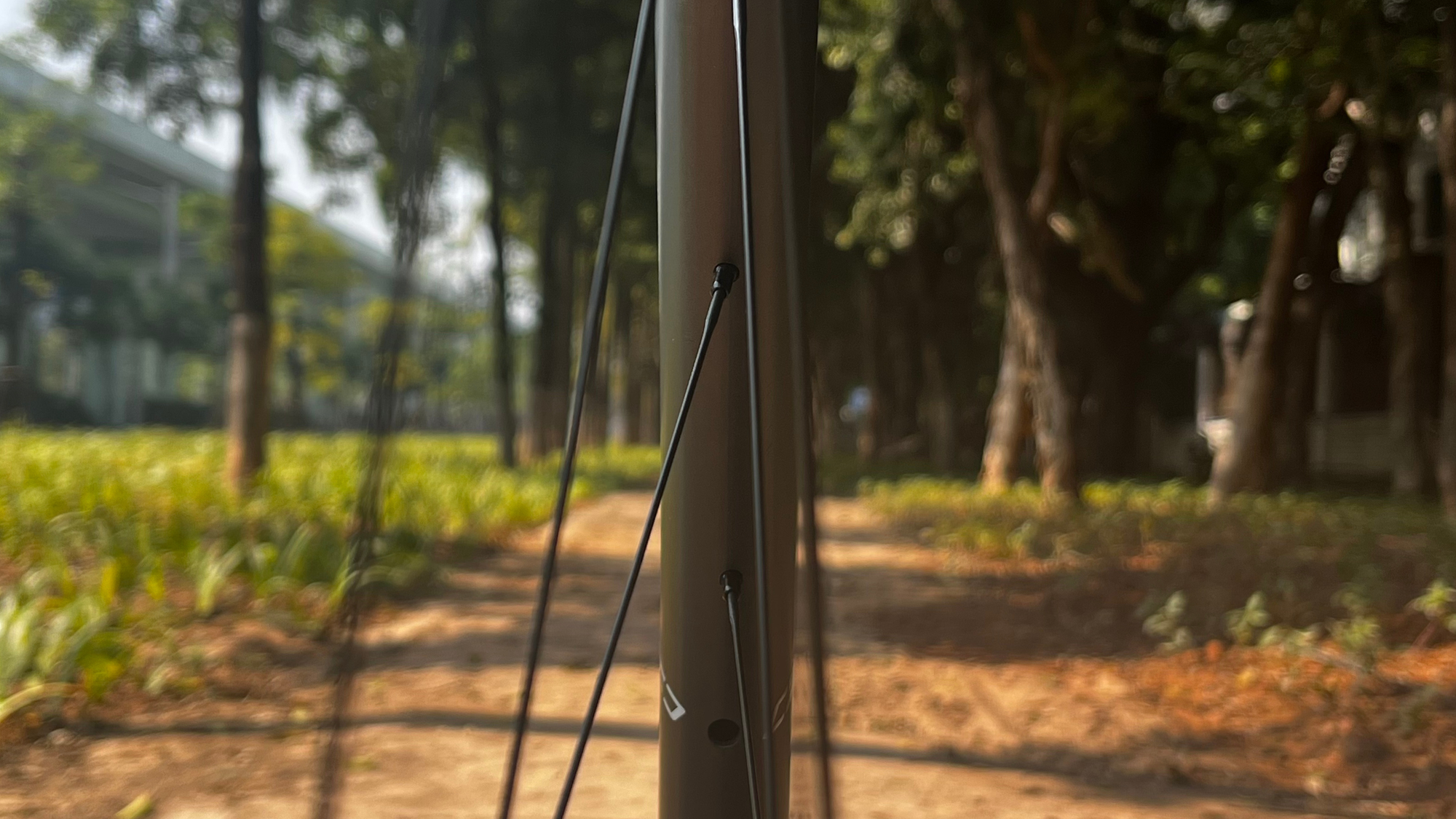

High concentricity, uniform force for stable ride; Xieda Wing20 steel spokes, high rigidity.
Aero shape, UV finish, wide rim design, low drag & high adaptability.
T800 carbon fiber UD weave, raw texture, lightweight & durable.
Tubeless & Clincher Compatible，Tubeless Tape 15-20g/set，Outer 30mm·Inner 23mm.
High concentricity, uniform force for stable ride; Xieda Wing20 steel spokes, high rigidity.
Shop the essentials

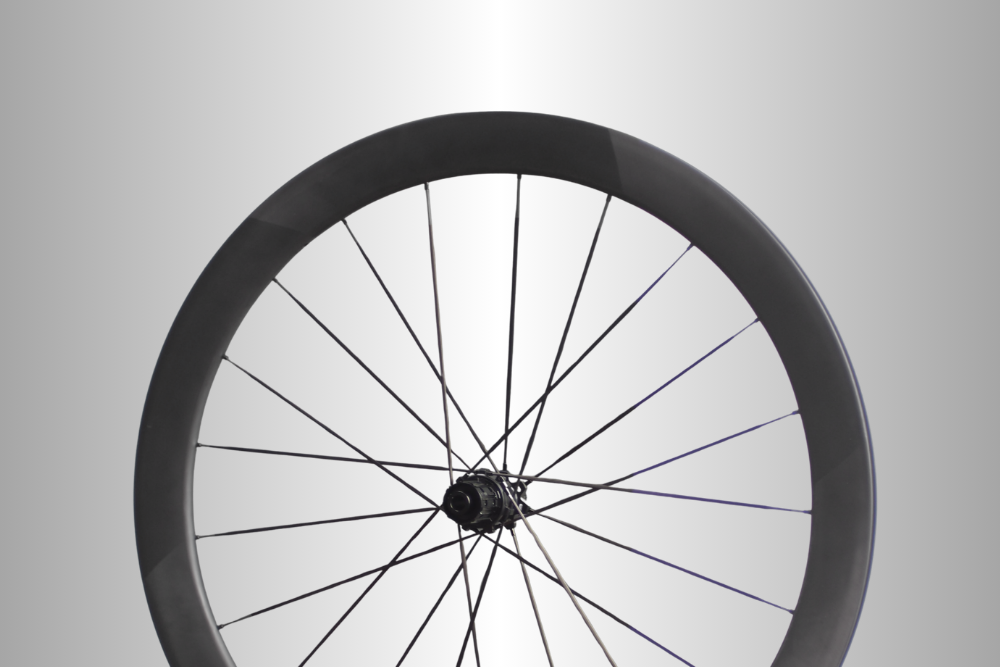

Flare · N2-Pro 50D Aero Road

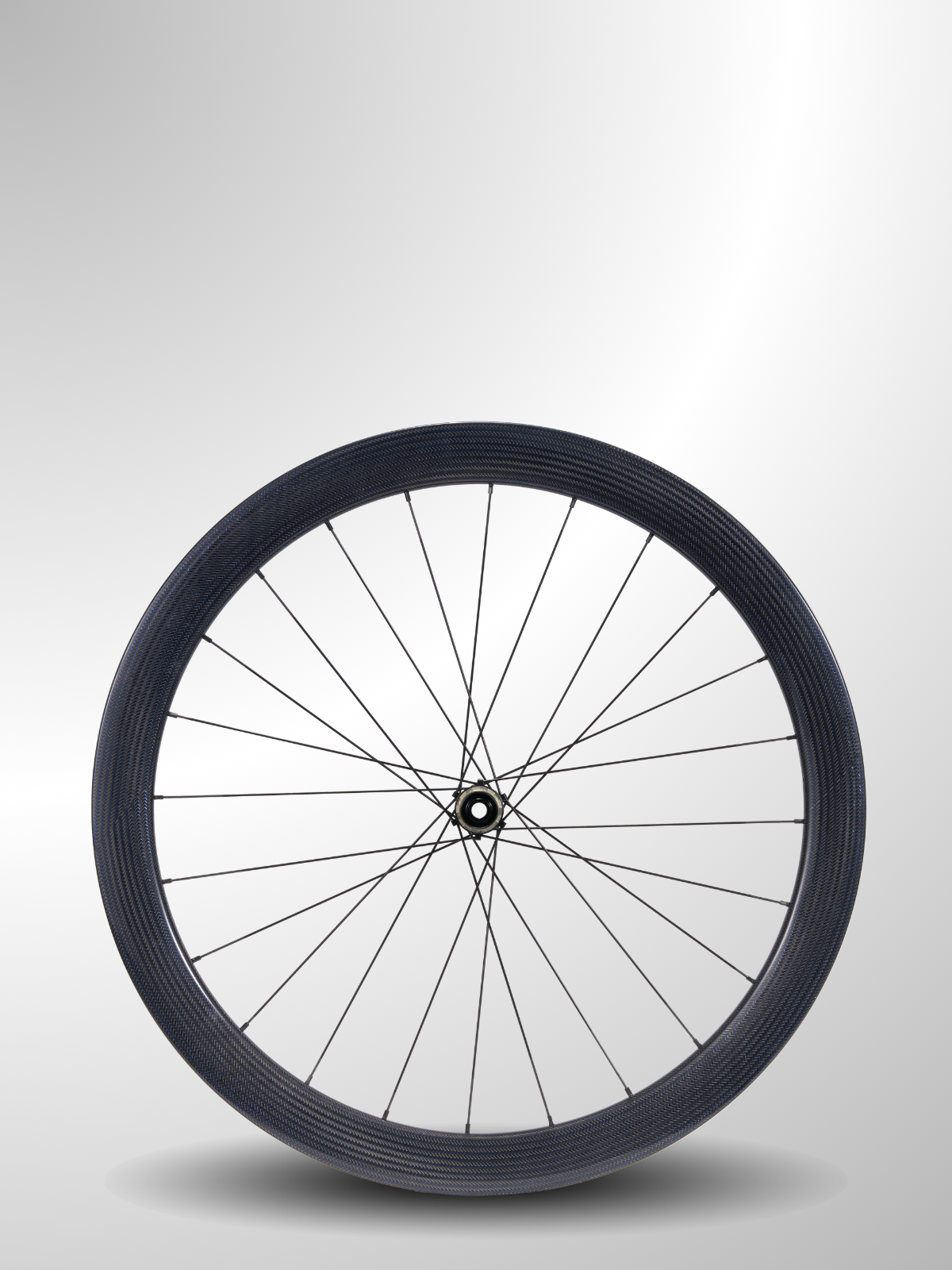

Blue Scale Finish Carbon Road Bike Wheel Set

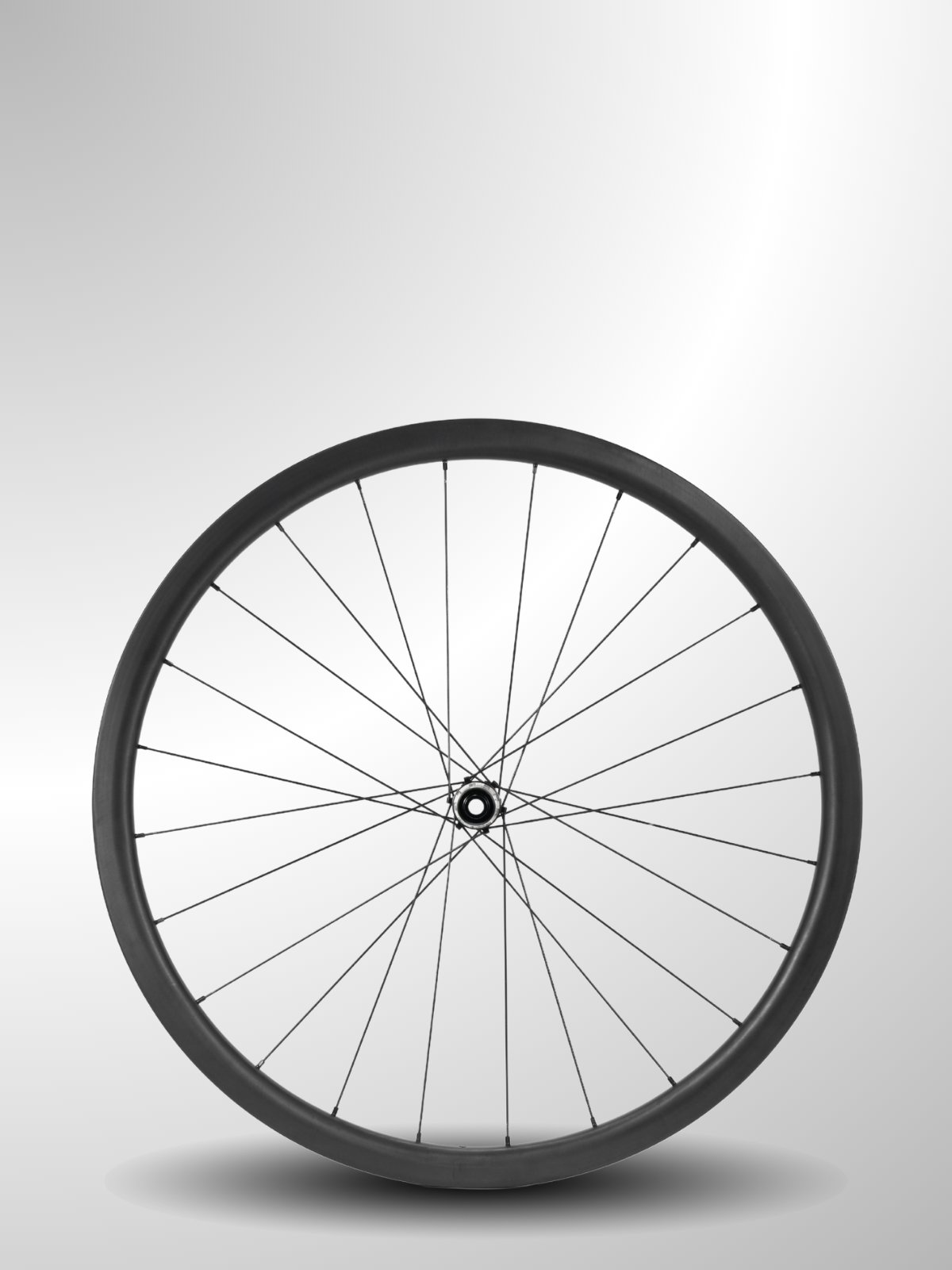

Gravel Bike Carbon Wheel Set - 2PCS

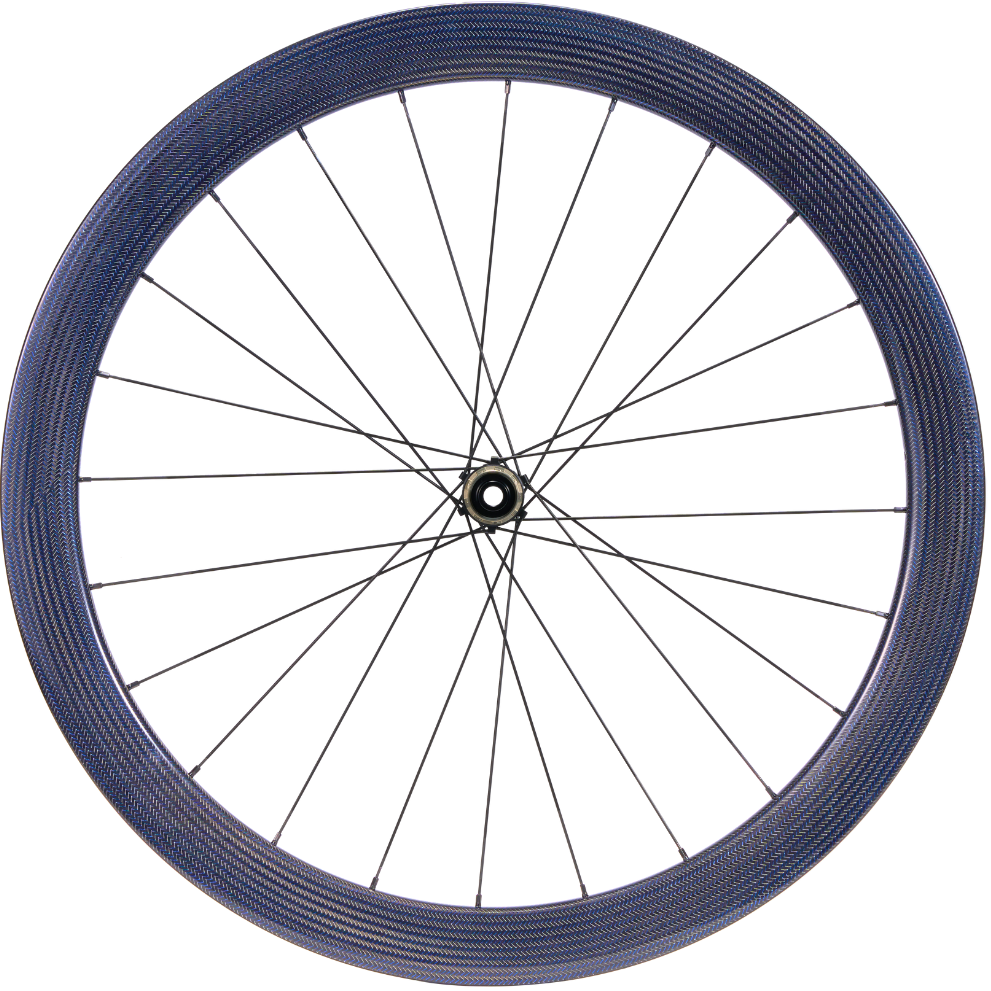

BLUE SCALE 50 ROAD
AERO 50 ROAD

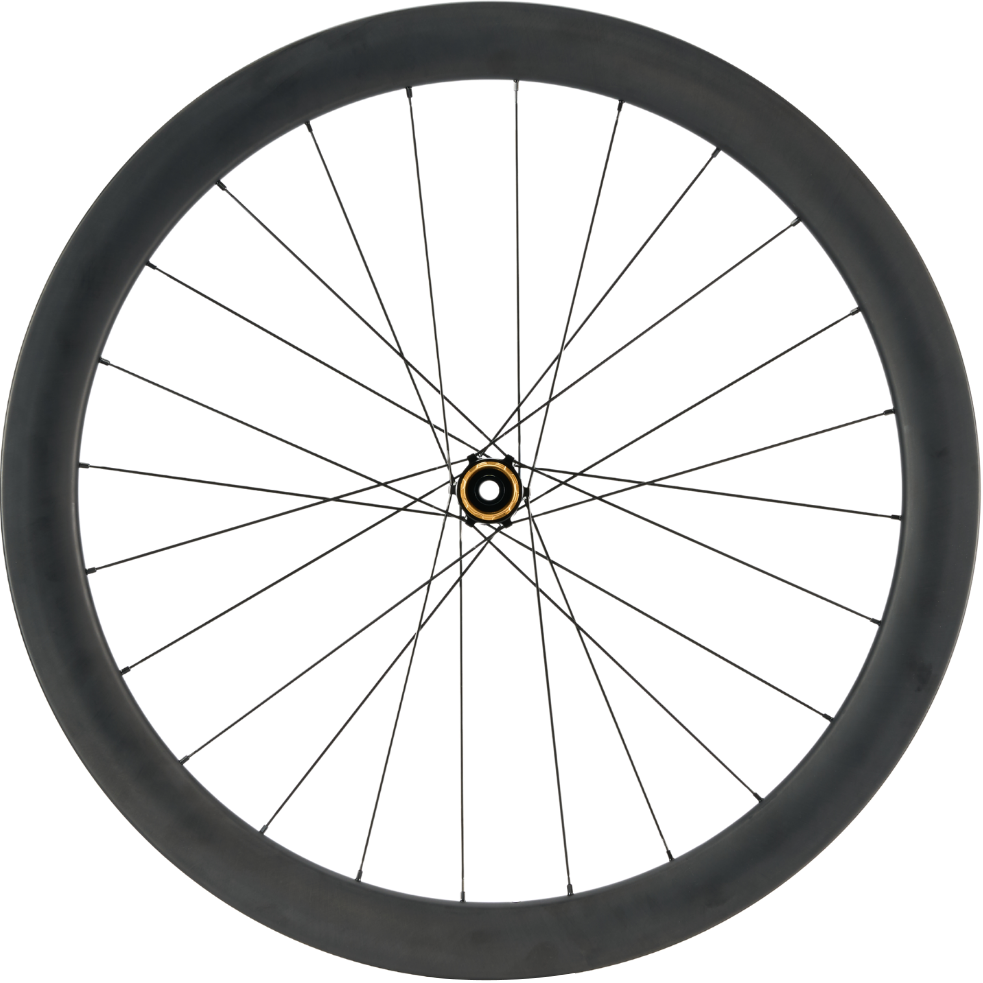

ENTRY 50 ROAD

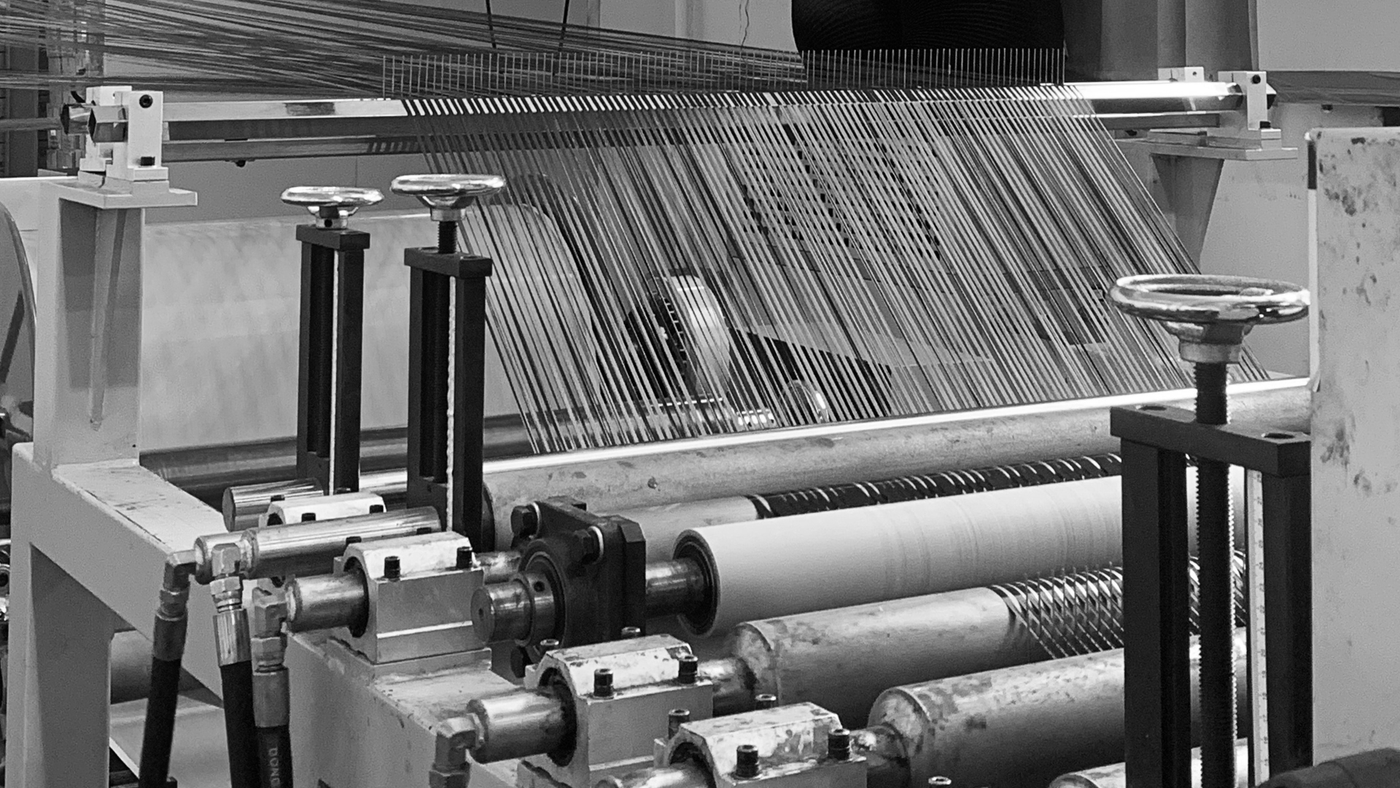

Fiber & Resin Weaving
Carbon filaments are woven synchronously with epoxy resin to make uniform and dense prepreg.
Prepreg Cutting
Precisely cut the prepreg according to the rim design size, reserving the required margin for the disc brake mount.

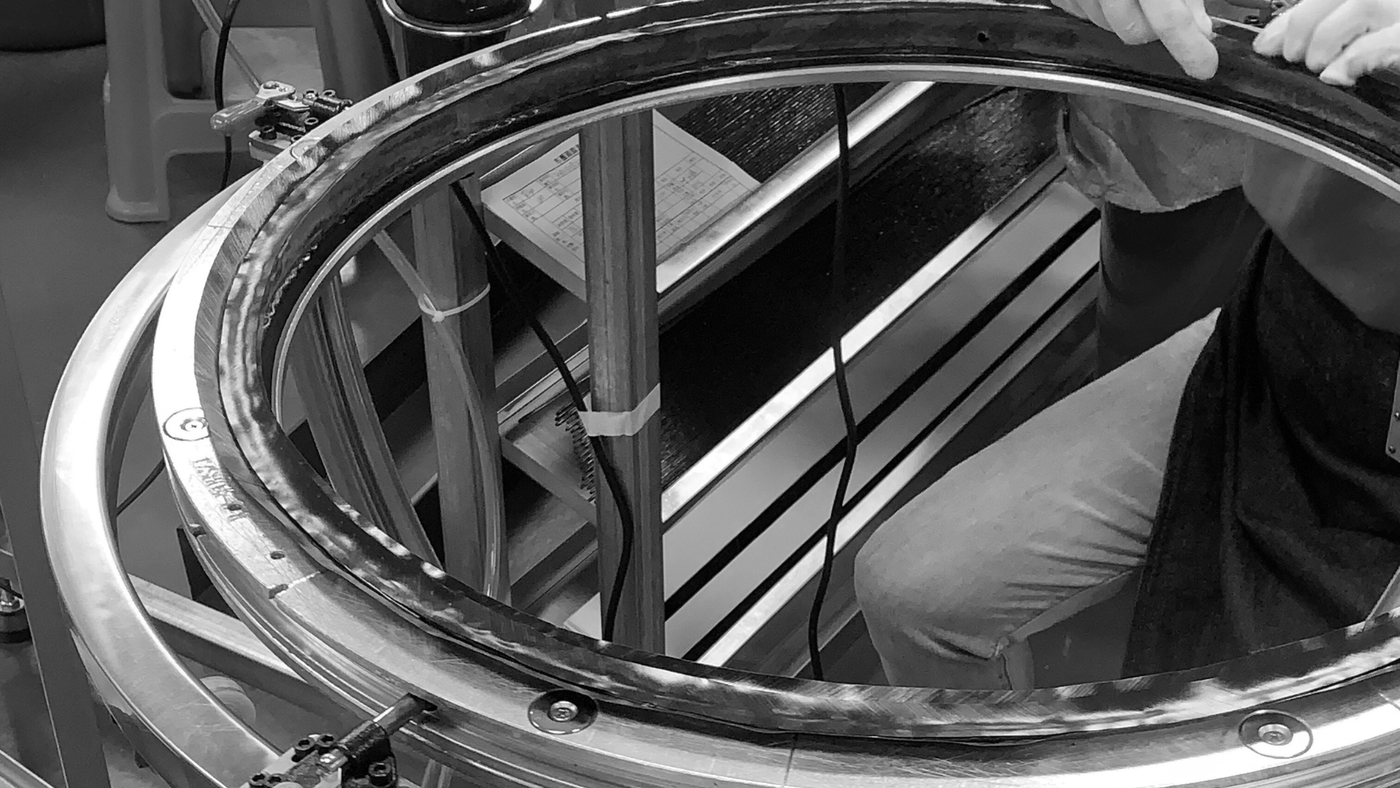

Mold Layup
Lay the cut prepreg into the mold cavity in a preset sequence, focusing on enhancing the layup density of the disc brake mount.

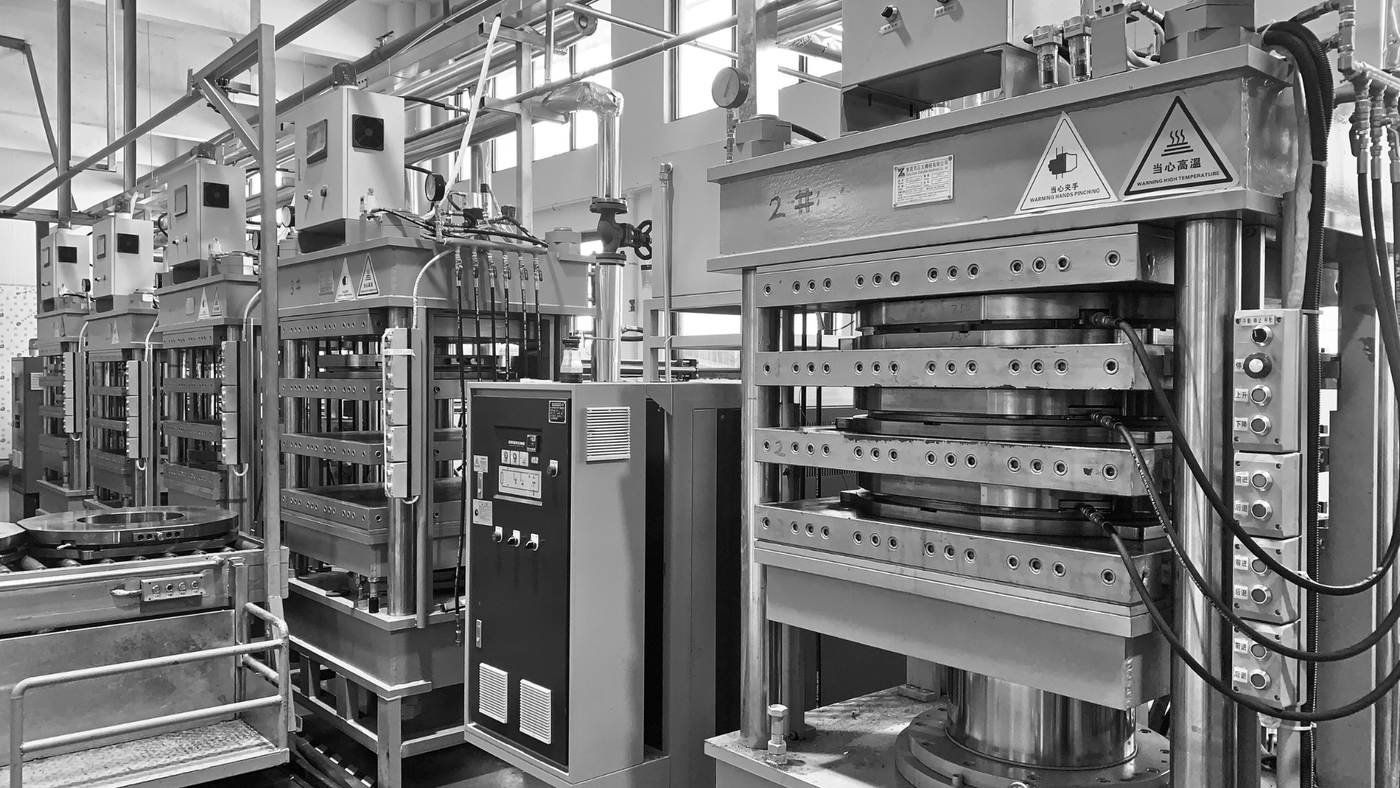

Autoclave Curing
Put the mold cavity into the autoclave and perform curing treatment under preset temperature and pressure conditions.

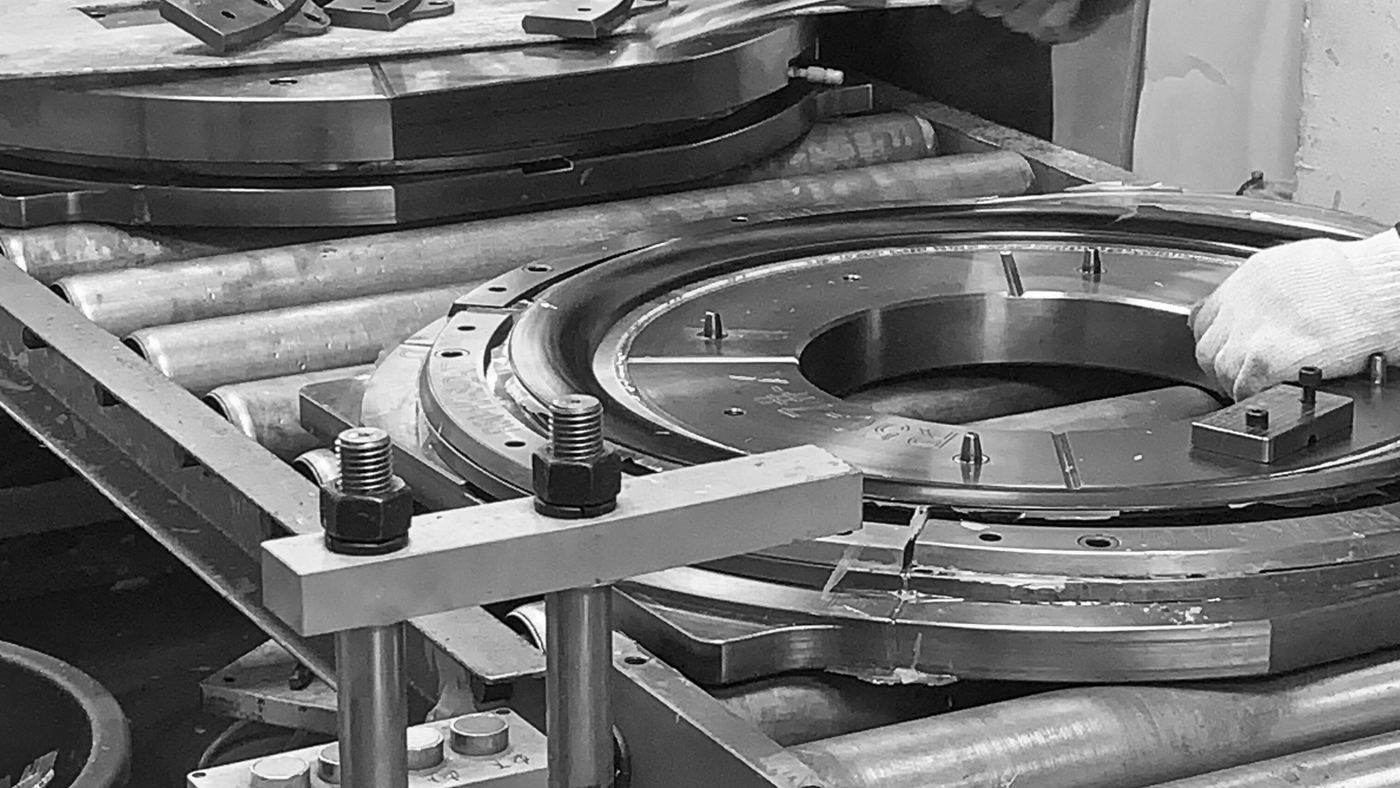

Surface & Vent Cleaning
After curing, clean the residual resin on the rim surface and synchronously clean the impurities in the internal vent channels to ensure smooth air circulation.
Closed Machine Drilling
Use a closed machine for precise drilling to ensure regular holes without burrs and improve rim tightness.

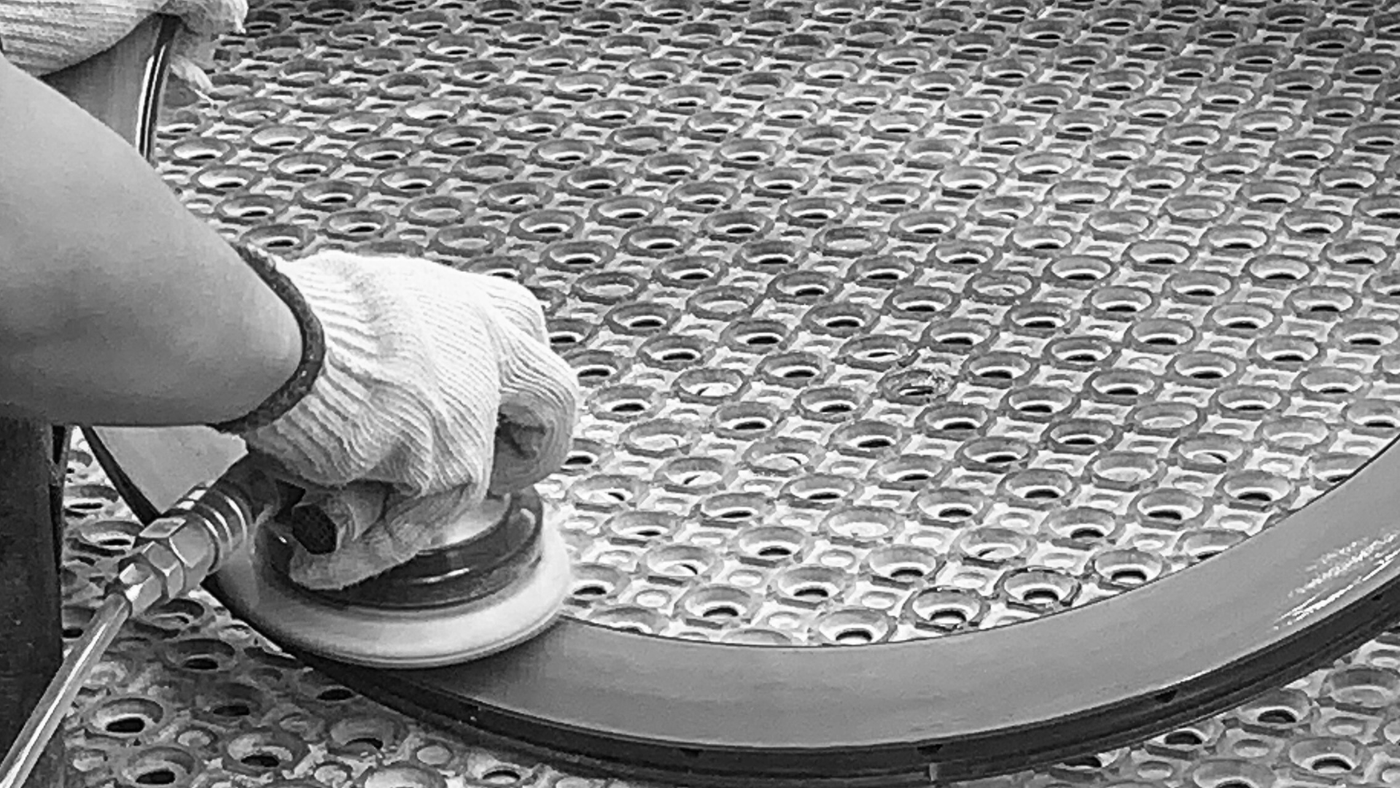

Polishing & Inspection
Precisely polish the rim drilling positions and rim edges to improve surface smoothness and fit; at the same time, conduct comprehensive inspection of polishing effect and hole position accuracy to eliminate surface defects and position deviation.

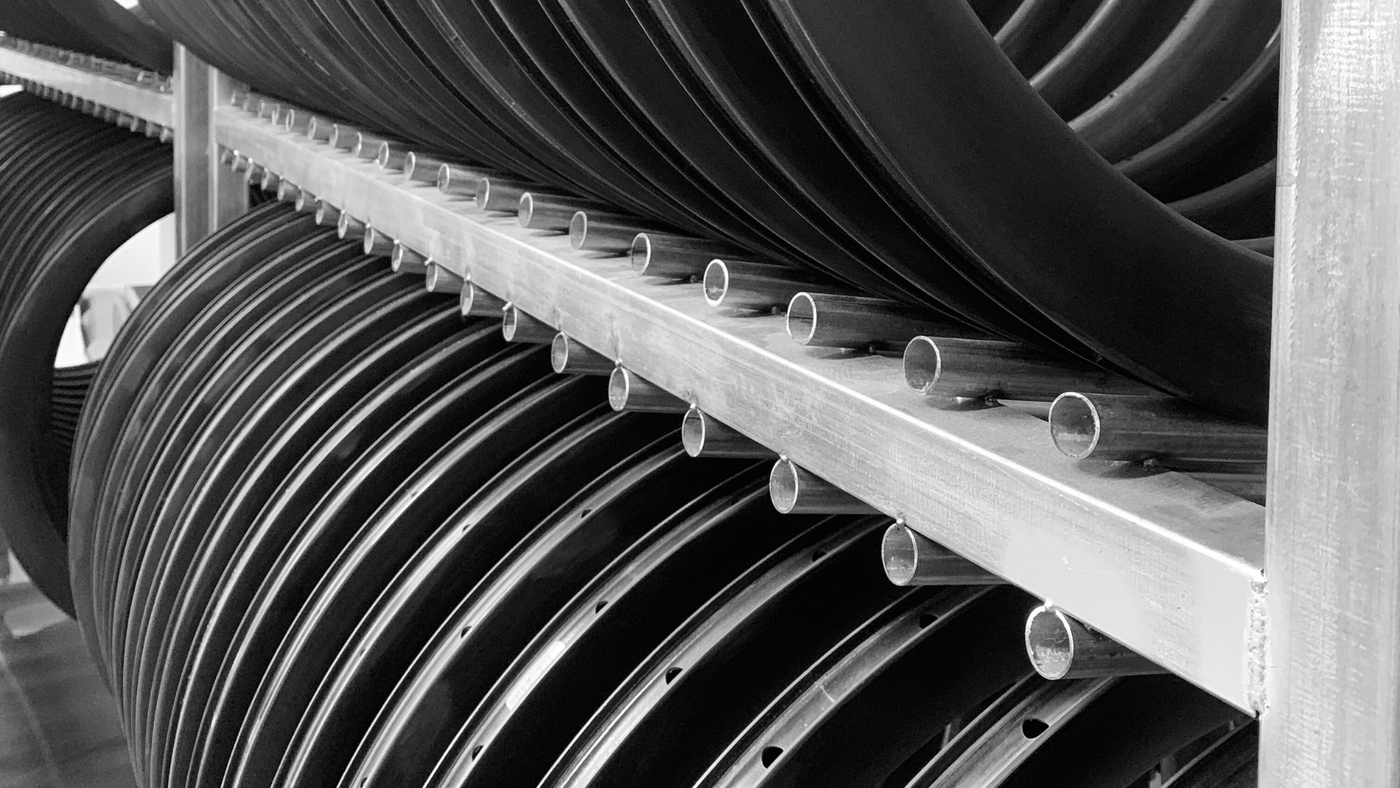

Finished Product Inspection
Conduct a comprehensive finished product inspection on the rim, focusing on checking overall structural integrity, hole position accuracy, surface smoothness and disc brake mount adaptability, eliminate defects to ensure up-to-standard performance, and send it to the subsequent link after passing the inspection.
